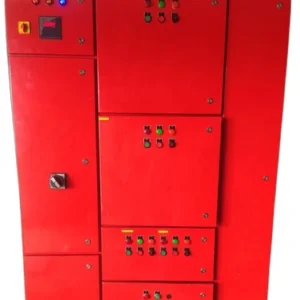

Fire Fighting Pump Control Panel

Fire Fighting Pump Control Panel

A Fire Fighting Pump Control Panel is the main unit that automatically or manually controls fire pumps, ensuring continuous water supply to hydrant and sprinkler systems for reliable fire protection.

The Automatic Fire Pump Control Panel ensures 24/7 fire safety readiness by starting pumps whenever system pressure drops. It manages jockey, electric, and diesel pumps with intelligent sequencing to maintain reliability and provide standby backup during power failures. Designed with MCCBs, relays, timers, alarms, and emergency shutdown features, it offers robust protection against overloads and faults. Housed in a durable powder-coated CRCA/mild steel enclosure (IP54/IP55), the panel complies with IS 12469, IEC, and NFPA 20 standards. Ideal for high-rise buildings, hospitals, malls, industrial plants, airports, and data centers, it minimizes manual intervention, reduces errors, and ensures long service life with low maintenance needs.

Add to quote
Categories: , Tags: ,

Description

Key Features

  • Automatic Operation: Starts pumps when pressure in the system drops below set levels.
  • Pump Sequencing:

    • Jockey Pump – Maintains normal line pressure and avoids unnecessary main pump operation.
    • Main Electric Pump – Activates when fire water demand increases.
    • Diesel Engine Pump – Provides standby backup during power failure.
  • Manual Override: Allows operators to manually run pumps in emergencies.
  • Status Indications: Pump running, fault, overload, low fuel, battery charging, and system alarms.
  • Safety & Protection: Equipped with MCCBs, relays, timers, overload/short-circuit protection, and emergency shutdown.
  • Durable Enclosure: Fabricated from CRCA/Mild Steel with powder coating; IP54/IP55 protection.
  • Standards Compliance: Designed in accordance with IS 12469, IEC, and NFPA 20 guidelines.

Applications

  • Residential & commercial high-rise buildings
  • Hospitals, hotels & educational institutions
  • Shopping malls, multiplexes & office complexes
  • Industrial plants, factories & warehouses
  • Airports, metro stations & data centers

Advantages

  • Ensures 24/7 fire safety readiness
  • Provides quick and automatic fire pump response
  • Minimizes manual effort and human error
  • Enhances overall fire protection system reliability
  • Long service life with low maintenance requirements
