420V Fire Fighting Pump Control Panel

420V Fire Fighting Pump Control Panel

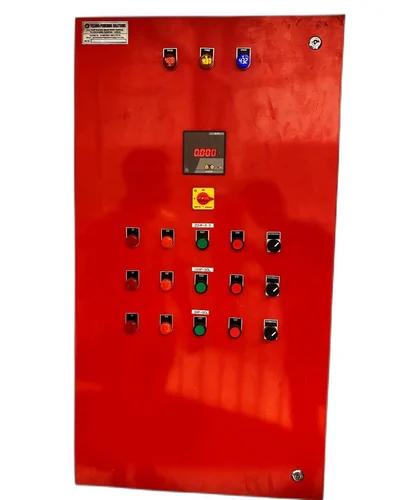

A 420V Fire Fighting Pump Control Panel is a high-voltage electrical unit that automatically and manually operates jockey, electric, and diesel pumps to ensure reliable water supply during fire emergencies in industrial, commercial, and high-rise applications.

The Fire Pump Control Panel (420V AC, 50Hz) provides reliable operation of fire hydrant and sprinkler systems with automatic pump sequencing. It controls jockey, electric, and diesel pumps to ensure uninterrupted water supply during emergencies. Equipped with MCCBs, relays, contactors, and advanced protection systems, it safeguards against overloads, short circuits, and power failures. Real-time indicators, alarms, and user-friendly LED/LCD interfaces enhance monitoring and operation. Built to IS 12469, IEC, and NFPA 20 standards, this panel is ideal for high-rise towers, industries, malls, hospitals, airports, and critical infrastructure. Its rugged design ensures long service life and 24/7 readiness for fire protection.

Add to quote
Categories: , Tags: ,

Description

Key Features:

  • Voltage Rating: Operates at 420V AC, 50Hz, suitable for high-capacity fire pumps.
  • Automatic Operation: Starts pumps automatically when system pressure drops in hydrant/sprinkler lines.
  • Pump Sequencing:
    • Jockey Pump – Handles minor pressure drops/leakages.
    • Main Electric Pump – Activates for full water flow demand.
    • Diesel Pump – Provides backup in case of power failure.
  • Indicators & Alarms: Fire condition, pump running, fault status, low fuel, battery charging, overload, and trip alarms.
  • Protection System: MCCBs, relays, contactors, timers, short-circuit, and overload protections.
  • User-Friendly Interface: Equipped with meters, LED/LCD display, selector switches, and emergency stop.
  • Compliance: Designed as per IS 12469, IEC, and NFPA 20 fire safety standards.

Applications:

  • High-rise residential & commercial towers
  • Industrial plants & manufacturing units
  • Shopping malls & multiplexes
  • Hospitals, hotels & educational institutions
  • Power plants, airports & metro stations

Advantages:

  • Reliable high-voltage fire pump operation
  • Ensures 24/7 automatic response during fire emergencies
  • Reduces risk of system failure with multiple pump sequencing
  • Long service life with rugged design and quality components
  • Provides complete compliance with fire safety regulations
